Especificações
Teclado:
37 teclas (sensível a velocity e release-velocity)
Polifonia Máxima:
32 vozes (ou um máximo de 24 vozes, dependendo dos ajustes)
Sistema de Geração de Som:
Gerador de som Altered FM
Estrutura:
6 operadores, 1 filtro, 3 EGs, 3 LFOs, 3 efeitos, step sequencer, arpeggiador
Algoritmos:
40 presets + algoritmos de usuário (únicos para cada programa)
Operadores:
5 modos (FM, Ring Mod., Filter, Filter FM, Wave Folder)
Formas de onda de oscilador:
21 formas de onda (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White)
Filtro:
11 tipos (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
EG:
ADSR
LFO:
23 formas de onda (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
V.Patch:
12 endereçamentos
Efeitos:
30 tipos (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
Sequenciador:
Step Sequencer (até 16 passos, até 6 notas por passo) , Motion Sequencer (até 6 trilhas)
Arpeggiador:
7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)
Número de Programas:
500 (250 preset programs e 250 user programs)
FAVORITE:
64 (16 Localidades × 4 Bancos)
Controles:
MODULATION wheel, PITCH wheel, knobs RATIO OP 1?6, sliders LEVEL OP 1?6, knobs DATA ENTRY A?F

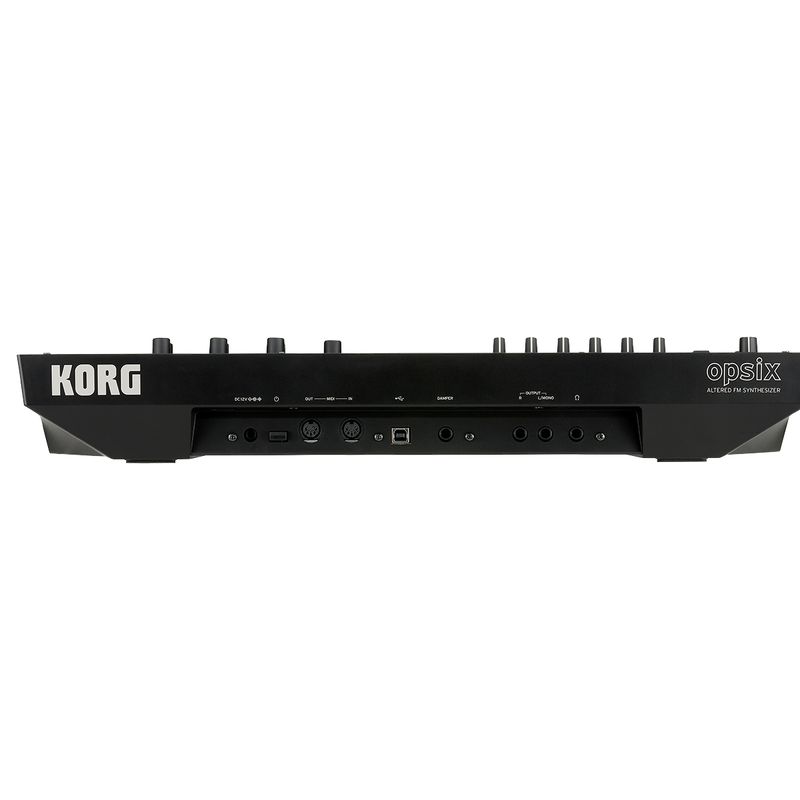

Entradas/Saídas:
Headphone (conector estéreo de 6.3 mm), OUTPUT L/MONO e R (conectores TRS balanceados de 6.3 mm), DAMPER (conector de 6.3 mm, half damper não suportado), conectores MIDI IN e OUT, porta USB B
Fonte de Energia:
Adaptador AC (DC12V)
Consumo de Energia:
5 W
Dimensões (W × D × H):
565 × 338 × 90 mm
Peso:
2.9 kg
Itens Incluídos:
Adaptador AC, Precauções, Quick Start Guide
Acessórios (comercializados separadamente):
DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
