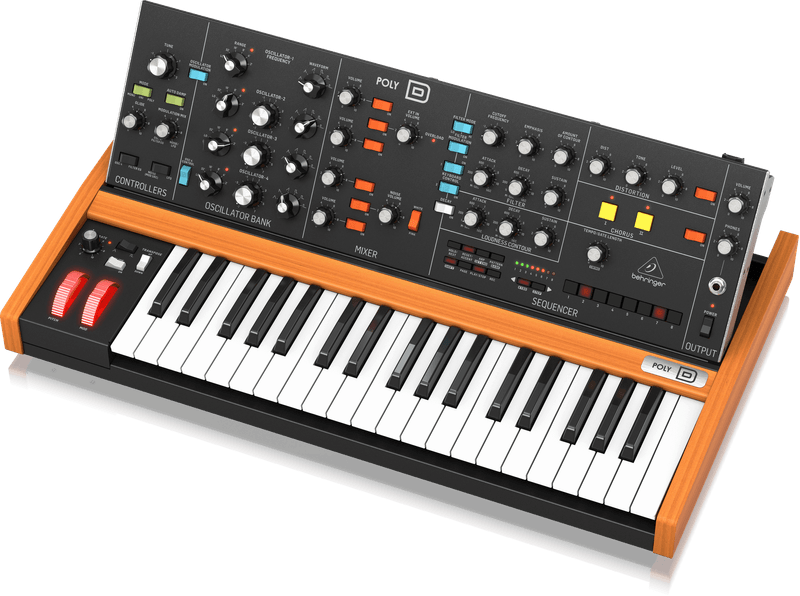

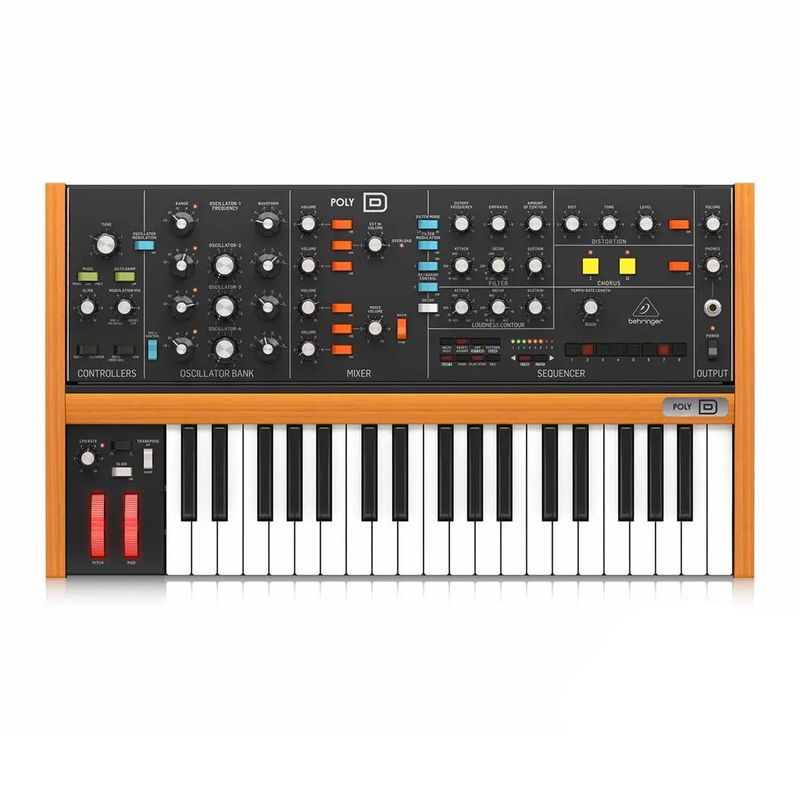

- 4-Voice Polyphonic Analogue Synthesizer
- 37 Full-size velocity-sensitive keys
- 4-Voice polyphonic design with mono-, unison- and polyphonic mode
- 4 Analogue VCOs with triangular-, sawtooth- and pulse waveforms
- Noise generator with white and pink noise
- 24 dB Ladder filter with resonance
- Switchable low pass-/high-pass filter
- Analogue LFO with square-/ triangular waveforms
- 2 ADS envelope for VCF and VCA
- Analogue BBD stereo chorus
- Integrated distortion with tone control
- 32-Step sequencer
- Arpeggiator
- Pitch- and modulation wheel
- Adjustable control panel and 84 controls for intuitive operation
- Includes an external power supply (12 V DC)
- Suitable optional cover: Art.493960 (not included)
Connectors:
- Balanced stereo output: 2x 6.3 mm jack
- Adjustable stereo headphone output: 6.3 mm jack
- External audio input: 6.3 mm jack
- Inputs for V-trigger, modulation, pitch-CV, filter & loudness: 6.3 mm jack
- Sync In/Out: 6.3 mm jack
- Outputs for V-trigger, pitch, velocity and aftertouch: 6.3 mm jack
- MIDI In/Out/Thru
- USB-B port
- DImensions: 647 x 89 x 360 mm (W x H x D)
