Acoustical specifications
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 127 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Transducers
Compression Driver: 1 x 1.0'', 1.5'' v.c
Woofer: 10'', 2.0'' v.c

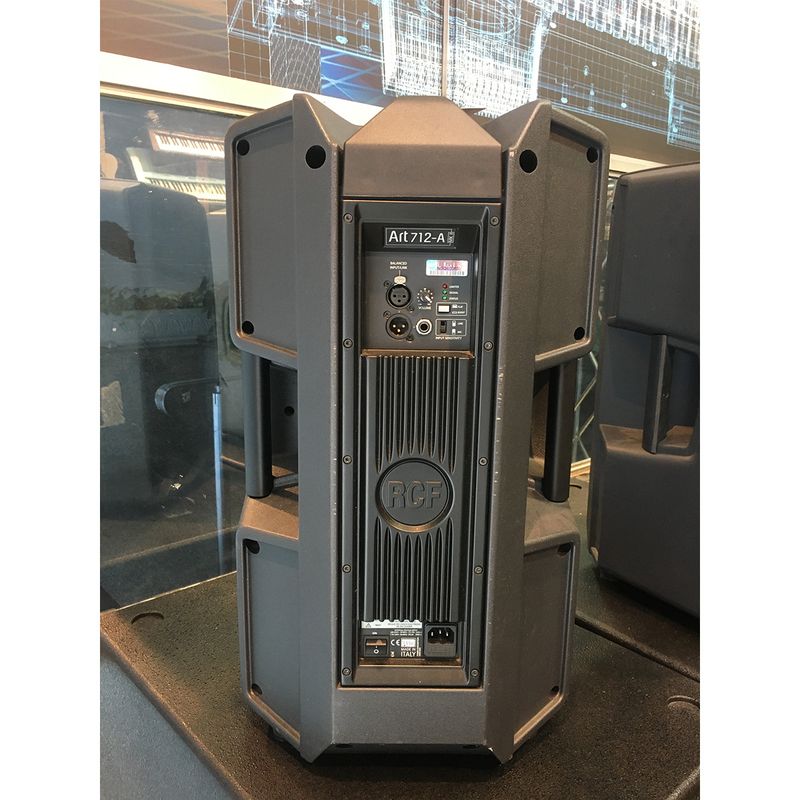

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Processor section
Crossover frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Power section
Total Power: 800 W Peak, 400 W RMS
High frequencies: 200 W Peak, 100 W RMS
Low frequencies: 600 W Peak, 300 W RMS
Cooling: Convection
Connections: VDE
